SANUPS A11M Online UPS
SANUPS A11M is the next-generation model of ASE-H Online UPS, offering parallel redundancy
for highly reliable system configuration.
This small-capacity modular uninterruptible power supply system provides a compact form factor, easy maintenance, individual device control, and cost savings.
EXTREMELY RELIABLE
The A11M Online UPS features fully autonomous parallel redundant operation, configurable as N+1 unit system. N+1 is a redundancy configuration commonly used in mission-critical systems, such as backup power for public institutions, transportation (roads, railways, airports, etc.), banks, and data centers to ensure high availability and reliability.
Unlike scenarios where a single UPS failure would result in system shutdown, the A11M seamlessly switches to battery operation, preventing immediate shutdown and ensuring continuous operation. This outstanding feature guarantees enhanced reliability and uninterrupted power supply.
EXTREMELY STABLE
WIDE INPUT VOLTAGE RANGE = LONGER BATTERY LIFE
The A11M Online UPS with wide input ranges offer flexible voltage compatibility, accommodating a maximum input voltage range of 55 to 150 V for 100 V models and 110 to 300 V for 200 V models. They also have an input frequency range of 40 to 120 Hz. This wide input range enables the UPS units to deliver a stable power supply, even in regions with significant power supply fluctuations.
By operating in such a wide input power range, these UPS units minimize the frequency of battery operation, reducing the strain on batteries and mitigating degradation and wear. This feature sets them apart from other products and ensures longer-lasting and more reliable performance, even in environments with unstable power supply conditions.
EASY MAINTENANCE WITH MODULAR DESIGN
The A11M power distribution unit (PDU) features a conveniently placed maintenance bypass on the front, ensuring easy access and simplified maintenance procedures. The modules are hot-swappable, while operating them in maintenance bypass mode. If a malfunction occurs during parallel redundant operations, the power module can be replaced quickly while supplying inverter power. We strive to make maintenance a hassle-free experience for our users.
A11M online uninterruptible power supply (UPS) is available in both 120V and 208 V.
(Configurable 100/110/115/120 & 200/208/ 220/230/240)
120V Group
- 1000VA(800W)
- 2000VA(1600W)
- 3000VA(2400W)
- 4000VA(3200W)
- 5000VA(4000W)
- 6000VA(4800W)
- 7000VA(5600W)
- 8000VA(6400W)
208V Group
- 1000VA(800W)
- 2000VA(1600W)
- 3000VA(2400W)
- 4000VA(3200W)
- 5000VA(4000W)
- 6000VA(4800W)
- 7000VA(5600W)
- 8000VA(6400W)
FEATURES
Double Leak Proof
SANUPS superior double-sealed battery design prevents short circuits and important data loss.
Smooth Air Flow
SANUPS’s improved heat prevention design increases its efficiency and saves more electricity than the previous generation.
Coating Protection
SANUPS’s circuit boards are fully coated through soldering to prevent short-circuiting, caused by dust and insects. Our dust filters are also available as an option.
Auto Health Check
SANUPS periodically performs an automatic battery test for maintenance purposes and sends notifications to the host if an issue occurs.
Noise Reduction
SANUPS emits the lowest electrical noise possible preventing potential problems to the connected loads. The circuits are designed in the acoustic anechoic chamber.
Leak Proof Battery
SANUPS automatically checks the battery’s condition periodically and sends notifications to the host when a problem occurs. The auto health check-ups extend the battery life.
Wide Input Range
SANUPS provides value to customers with a very wide input voltage window, extremely tight output voltage, and frequency regulation.
Over Current Protection
SANUPS stops excessive current when overcurrent occurs resulting in no voltage change to the utility power and related equipment.
Short Circuit Protection
SANUPS automatically disconnects the circuit in the event of an overload or short circuit, preventing damage to the network and equipment.
SHUTDOWN ASSISTANT SOFTWARE
SANUPS SOFTWARE is a shutdown assistant. By installing it on the shutdown target computers, your mission-critical equipment can be safely shutdown ensuring system uptime, data integrity, and the ability to maintain business continuity. The application shutdown function even shuts down Microsoft office applications as well.
SANUPS SOFTWARE is innovative software because it also has the capability of a commander server*1 (LAN Card functionality) as well as uninterruptible power supply monitoring for today’s complicated IT infrastructure.
*1 To use the software acts as a commander, please connect commander PC to uninterruptible power supply system via serial cable.
*1 Shutdown target devices need to be powered by the same uninterruptible power supply system that the commander PC is powered by.

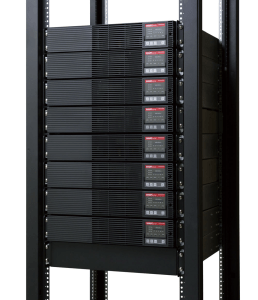

A11M
Rack 120V/208V
The A11M online UPS is designed for seamless integration with a dedicated Power Distribution Unit (PDU).
For optimal compatibility, please refer to the provided set part number. Contact us for more details.
Set Part Number | Capacity | Product Name | Part Number | Input | Output | Input Connection |
S-A11M102A1UJ | 1kVA | A11M Online UPS Single Rack 1000VA | A11M102A001MUJP X 1 | 120V | 120V | N/A |
5kVA | PDU 5.0kVA for 120V | PDA11M502A01UJ | 120V | 120V | I/O Terminal brock | |
Compatible Floor Mounting Bracket | FMA11MA00 | |||||
S-A11M202A1UJ | 1kVA | A11M Online UPS Single Rack 1000VA | A11M102A001MUJP X 2 | 120V | 120V | N/A |
5kVA | PDU 5.0kVA for 120V | PDA11M502A01UJ | 120V | 120V | I/O Terminal brock | |
S-A11M302A1UJ | 1kVA | A11M Online UPS Single Rack 1000VA | A11M102A001MUJP X 3 | 120V | 120V | N/A |
5kVA | PDU 5.0kVA for 120V | PDA11M502A01UJ | 120V | 120V | I/O Terminal brock | |
S-A11M402A1UJ | 1kVA | A11M Online UPS Single Rack 1000VA | A11M102A001MUJP X 4 | 120V | 120V | N/A |
5kVA | PDU 5.0kVA for 120V | PDA11M502A01UJ | 120V | 120V | I/O Terminal brock | |
S-A11M502A1UJ | 1kVA | A11M Online UPS Single Rack 1000VA | A11M102A001MUJP X 5 | 120V | 120V | N/A |
5kVA | PDU 5.0kVA for 120V | PDA11M502A01UJ | 120V | 120V | I/O Terminal brock | |
S-A11M602A1UJ | 1kVA | A11M Online UPS Single Rack 1000VA | A11M102A001MUJP X 6 | 120V | 120V | N/A |
8kVA | PDU 8.0kVA for 120V | PDA11M802A01UJ | 120V | 120V | I/O Terminal brock | |
S-A11M702A1UJ | 1kVA | A11M Online UPS Single Rack 1000VA | A11M102A001MUJP X 7 | 120V | 120V | N/A |
8kVA | PDU 8.0kVA for 120V | PDA11M802A01UJ | 120V | 120V | I/O Terminal brock | |
S-A11M802A1UJ | 1kVA | A11M Online UPS Single Rack 1000VA | A11M102A001MUJP X 8 | 120V | 120V | N/A |
8kVA | PDU 8.0kVA for 120V | PDA11M802A01UJ | 120V | 120V | I/O Terminal brock | |
S-A11M102A2UJ | 1kVA | A11M Online UPS Single Rack 1000VA | A11M102A002MUJP X 1 | 208V | 208V | N/A |
8kVA | PDU 8.0kVA for 208V | PDA11M802A02UJ | 208V | 208V | I/O Terminal brock | |
Compatible Floor Mounting bracket | FMA11MA00 | |||||
S-A11M202A2UJ | 1kVA | A11M Online UPS Single Rack 1000VA | A11M102A002MUJP X 2 | 208V | 208V | N/A |
8kVA | PDU 8.0kVA for 208V | PDA11M802A02UJ | 208V | 208V | I/O Terminal brock | |
S-A11M302A2UJ | 1kVA | A11M Online UPS Single Rack 1000VA | A11M102A002MUJP X 3 | 208V | 208V | N/A |
8kVA | PDU 8.0kVA for 208V | PDA11M802A02UJ | 208V | 208V | I/O Terminal brock | |
S-A11M402A2UJ | 1kVA | A11M Online UPS Single Rack 1000VA | A11M102A002MUJP X 4 | 208V | 208V | N/A |
8kVA | PDU 8.0kVA for 208V | PDA11M802A02UJ | 208V | 208V | I/O Terminal brock | |
S-A11M502A2UJ | 1kVA | A11M Online UPS Single Rack 1000VA | A11M102A002MUJP X 5 | 208V | 208V | N/A |
8kVA | PDU 8.0kVA for 208V | PDA11M802A02UJ | 208V | 208V | I/O Terminal brock | |
S-A11M602A2UJ | 1kVA | A11M Online UPS Single Rack 1000VA | A11M102A002MUJP X 6 | 208V | 208V | N/A |
8kVA | PDU 8.0kVA for 208V | PDA11M802A02UJ | 208V | 208V | I/O Terminal brock | |
S-A11M702A2UJ | 1kVA | A11M Online UPS Single Rack 1000VA | A11M102A002MUJP X 7 | 208V | 208V | N/A |
8kVA | PDU 8.0kVA for 208V | PDA11M802A02UJ | 208V | 208V | I/O Terminal brock | |
S-A11M802A2UJ | 1kVA | A11M Online UPS Single Rack 1000VA | A11M102A002MUJP X 8 | 208V | 208V | N/A |
8kVA | PDU 8.0kVA for 208V | PDA11M802A02UJ | 208V | 208V | I/O Terminal brock |
Option
Capacity | Product Name | Part Number | Input | Output | Input Connection |
---|---|---|---|---|---|
All | E11B/ A11M Rack Support Rail | RM039 | |||
All | External Battery Module/ 20 min back up | BCA11M102A01US |
