A11H Online UPS Rack 2000VA with Remote switch, AUX

Part Number: A11H202A011USP

SANUPS A11H was designed to provide not only sustainable power but also the capability of handling large power fluctuations to achieve further stability in mission-critical equipment.

A11H’s unique features enable it to accept a wide input voltage (55V~150V) and frequency range (40Hz~120Hz) resulting in an extended battery and product life.

SANUPS A11H has a wide input and frequency range that can save commercial operations and mission-critical equipment.



WIDER THE RANGE, THE MORE RELIABLE

SANUPS A11H’s wide input voltage & frequency range, as well as noise reduction technology, were developed for light to medium industrial devices and commercial equipment. Your device will enjoy our purest sine wave in both voltage and current.



ADVANCED DESIGN & COMPONENTS

SANUPS uses Sanyo Denki’s original RCC circuit which extends top-specification internal components such as capacitors, transformers, and reactors for superior durability and long product life in a smaller form-factor.



STRINGENT PRODUCTION & QUALITY CONTROL

  • ISO9001, 140001, OHSAS 18001 certified
  • Removed human error from production
  • Flux-free production

We know the uninterruptible power supply system is a foundation for industrial machines and network infrastructure.

Our 90 years of experience and craftsmanship have been garnering trust from our most respected customers.

Model A11H202A011USP
Rated power capacity (apparent/active) 2 kVA / 1.4 kW
Input
Rated voltage 120 V
Frequency range 40 to 120 Hz
Input connection NEMA L5-20P
Cord Length 6 ft
Voltage range 55 to 150 V (40%) 68 to 150V (70%) 80 to 150V (100%)
Output
Rated voltage 120 V
Voltage harmonic distortion 3% max. (Linear load)
7% max. (Non-linear load)
Rated frequency 50/60 Hz
Topology True online double conversion
Wave form type Pure sine wave
Output Connection NEMA5-20Rx4
Bypass Built in
Number of phases/wires Single-phase 2-wire
Output Voltage range ±2% Max.
Overload capacity 105% (200 ms)
Efficiency (Maximum%) Contact us
Power Consumption 250 W
Battery
Type Leak Proof Small-sized valve-regulated lead-acid (VRLA) battery
Included Battery Packs 1 pcs
Replacement Battery BPE11A202A00 Detail
Typical Recharge time (100%) 12 Hours
Expected Battery Life 5 years
Run Time (Load 100%) 5 min (Link Below)
External Battery Module BCE11A202A01US Detail
BCE11A202A02US Detail
External Battery Module Size (HxWxD) 17.32x22.24x3.39in (01US)
(440x565x86mm)
17.32x24.80x3.39in (02US)
(440x630x86mm)"
External Battery Module Weight 74.96lbs(34kg) (01US)
103.62lbs(47kg) (02US)
External Battery Module Shipping Size (HxWxD) 22.44x27.95x15.35in (01US)
(570x710x390mm)
22.83x27.95x15.35in (02US)
(580x710x390mm)"
External Battery Module Shipping Weight 99.21lbs(45kg) (01US)
121.25lbs(55kg) (02US)
Expected product life time 7 years
Connection RS232C, EPO, Output Line Control Port, Remote Port
Acoustic noise 45 dB max.
Operating temperature 0 to 40°C
Operating humidity 20 to 90%
Operating Elevation 3000 m max.
Unit Size (HxWxD) 17.32x22.24x3.39in (440x565x86mm)
Unit Weight 63.93lbs (29 kg)
Unit Shipping Size (HxWxD) 22.44x29.53x10.63in (570x750x270mm)
Unit Shipping Weight 72.75lbs (33 kg)
Certification UL1778 5th edition (E226092)
FCC Part 15 Subpart B Class C

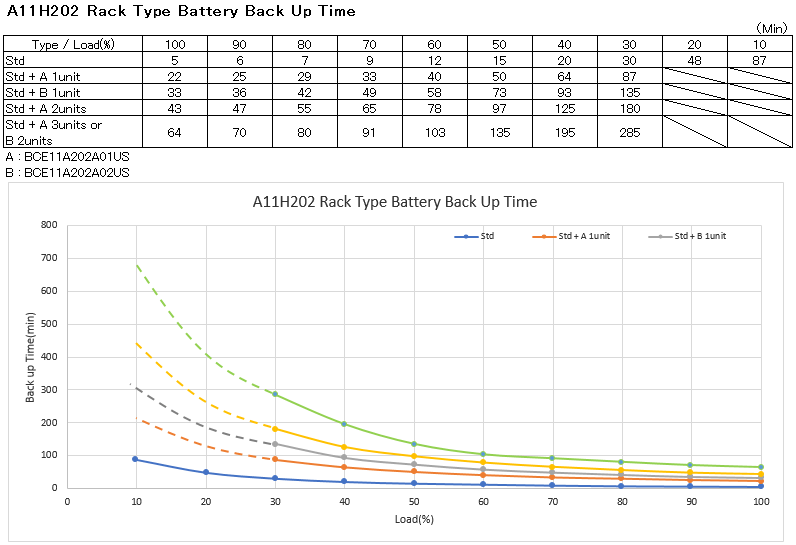

Battery Backup Run Time

What’s in the box?

  • UPS
  • Rack mounting bracket x1
  • Network cable x1
  • Power Management Software disc (Stand Alone Free Version) x1
  • Floor Mounting Stand x2
  • Instruction Manual x1
  • User Settings Guide x1
